| Brand Name: | JUGE |
| Model Number: | AG-GC07 |
| MOQ: | 1 Unit |
| Price: | USD4000-80000 |
| Payment Terms: | T/T,Online Order |
| Supply Ability: | 100 Unit/Week |

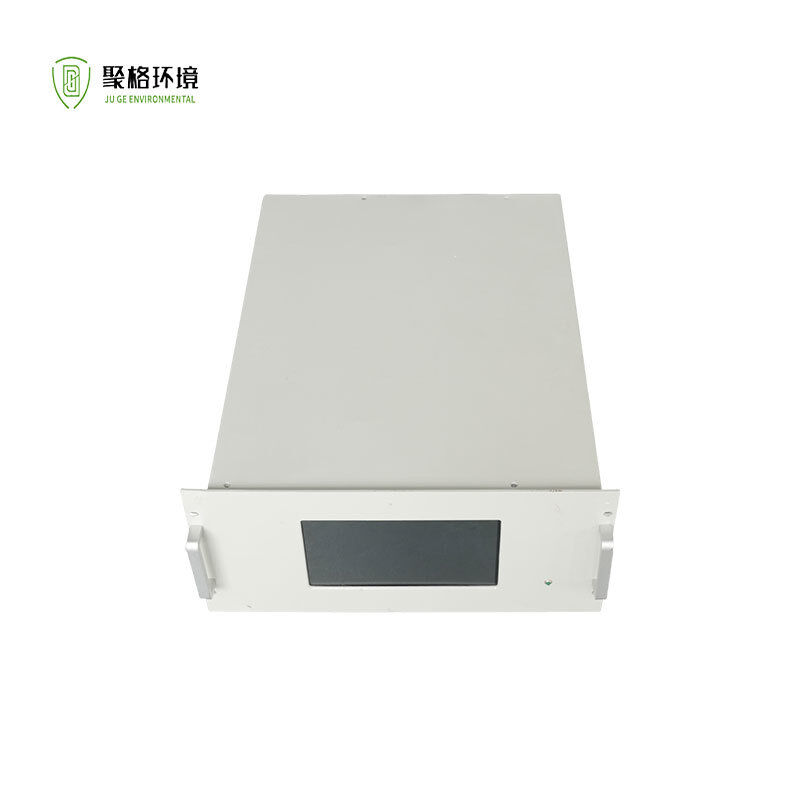

Vocs Cems Gas Chromatograph Methane Fid Non-Methane Total Hydrocarbons Analyzer
>>Overview
The AG-GC07 gas chromatograph uses high-temperature heateddual-column parallel backflushing chromatography separation technology.
lt can automatically measure and analyze methane and total hydrocarbons content. The non-methane totalhydrocarbons (NMHC) content is calculated by the difference between total hydrocarbons and methane. Thissignificantly shortens the analysis cycle. Additionally, the high-temperature heating technology, designed forhigh-boiling non-methane total hydrocarbons, greatly reduces the chromatographic peak broadening ofhigh-boiling NMHCs, allowing for accurate measurement of NMHCs, even in the presence of high concentra-tions of non-methane total hvdrocarbons.
>>Feature
| Dimensions | 19'' standard chassis, 5U height |
| Power supply | 220VAC,50Hz |
| Operating Power | <500VA(Startup <1000VA) |
| Operating Temperature | (5-35)ºC |
| Operating Humidity | (20-90)%RH |
| Detector | High-sensitivity FID detector |
| FID Detection Limits | Methane 0.1mg/m3; Non-methane total hydrocarbons (NMTH) 0.05mg/m3 (as propane) |
| Range | Methane 0.1~100mg/m3; NMTH 0.1~100mg/m3 as propane, customizable range |
| Chromatographic Column | 1m Porapak Q packed column |
| Analysis Cycle | 2min |
| Sample Gas Temperature | Ambient to~150ºC |
| Sample Flow Rate | ≥0.5L/min |
| Gas Supply Requirements | Hydrocarbon-free air:0.4MPa; Hydrogen:0.2MPa; Nitrogen:0.4MPa; Calibration gas:CH4/C3H8 |
| Repeatability | <2% |
| Auxiliary Equipment | Built-in industrial control computer |
| Analog I/O | 485 |
