| Brand Name: | JUGE |
| Model Number: | AG-UVll3 |
| MOQ: | 1 Unit |
| Price: | USD4000-80000 |
| Payment Terms: | T/T,Online Order |
| Supply Ability: | 100 Unit/Week |

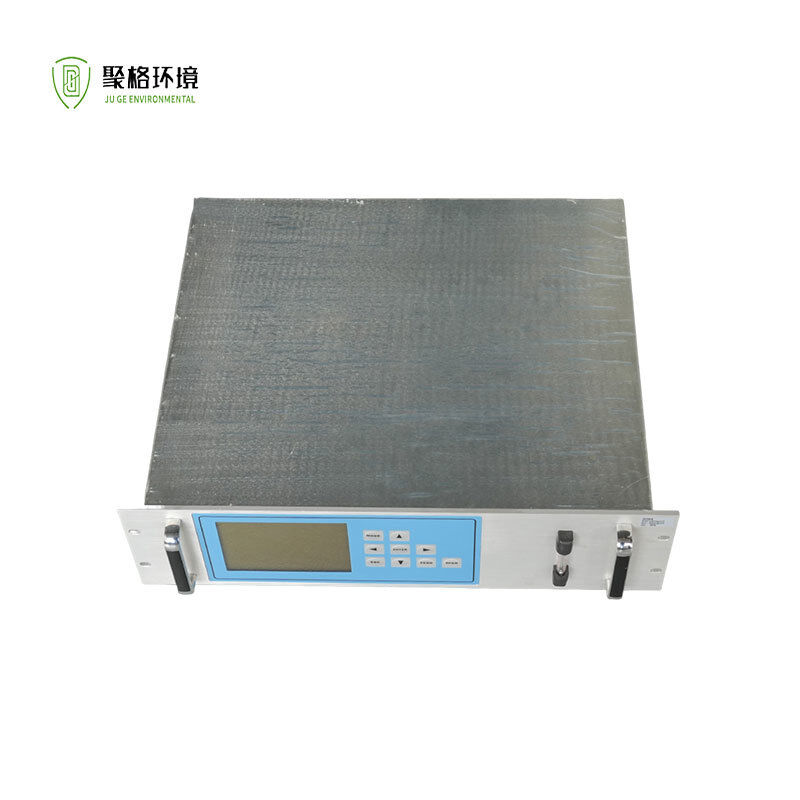

Doas UV So2 No No2 O2 Flue Gas Analyzer for Cems
>>Overview
The AG-UVll3 flue gas analyzer consists of components such as alight source, gas chamber, spectrometer, HMl module, interfaceboard,temperature sensor, electrochemical oxygen sensor, andexpandable modules.
Based on conventional Differential Optical Absorption Spectrosco-py(DOAS), the analyzer processes spectral data using the PartialLeast Squares(PLS)algorithm.The combined measurementchamber design offers high accuracy, powerful functionality, andeasy maintenance.lt integrates a high-performance microproces-sor, with embedded software that enables signal processing, datacalculation, real-time monitoring, and functions such as keyboardoperation,LCD display,alarms,and settings in the human-ma-chine interface.
>>Feature
| Product Model and Name | Gas Analyzer |
| Measurement Components | SO2: 0-100mg/m3, oem NO: 0-100mg/m3, oem NO2: 0-100mg/m3, oem O2: 0-25% |
| Principle | UV absorption spectroscopy technology+zirconia measurement algorithm |
| Resolution | SO2/NO/NO2: 0.05mg/m3 O2: 0.01% |
| Linearity | ≤±1%F.S/24H |
| Repeatability | ≤±1%F.S/24H |
| Zero drift | ≤±1%F.S/24H |
| Range drift | ≤±2.5%F.S/24H |
| Working temperaure | ≤±1%F.S/24H |
| Response time | ≤±2.5%F.S/24H |
| O/I | 8 channel output, 8 channel input, OEM |
| Communication interface | 2 channel RS232, 5 channel 4-20mA |
| Power supply | AC220V, ±20%, 100W |
| Sample Gas Pressure range | Current Pressure ±0.1Bar, (1.0-2)L/min |
| Sample gas temp/hum range | ≤95%RH, (0-50)ºC |
| Size | 3U&19'' |
