Flue Gas Analyzer FID NMHC Analyzer with Real-time Measurement High-temperature Analysis

Name: Flue Gas Analyzer FID NMHC Analyzer with Real-time Measurement High-temperature Analysis
Brand: Nanjing Juge Environmental Technology Co., Ltd.
SKU: AG-NMHC07
Price: 42,000.00 USD
Availability: InStock

Brand Name:	JUGE
Model Number:	AG-NMHC07
MOQ:	1 Unit
Price:	USD4000-80000
Payment Terms:	T/T,Online Order
Supply Ability:	100 Unit/Week

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Product Name:

FID NMHC Analyzer

Parameter:

NMHC, THC, CH4

Range:

NMHC:(0-200)mgC/m3

Packaging Details:

Neutral carton

Highlight:

Non Methane total hydrocarbon analyzer

CEMS total hydrocarbon analyzer

Flue Gas fid hydrocarbon analyzer

Product Description

Flue Gas Analyzer Cems FID Vocs Waste Gas Non-Methane Total Hydrocarbon Analyzer

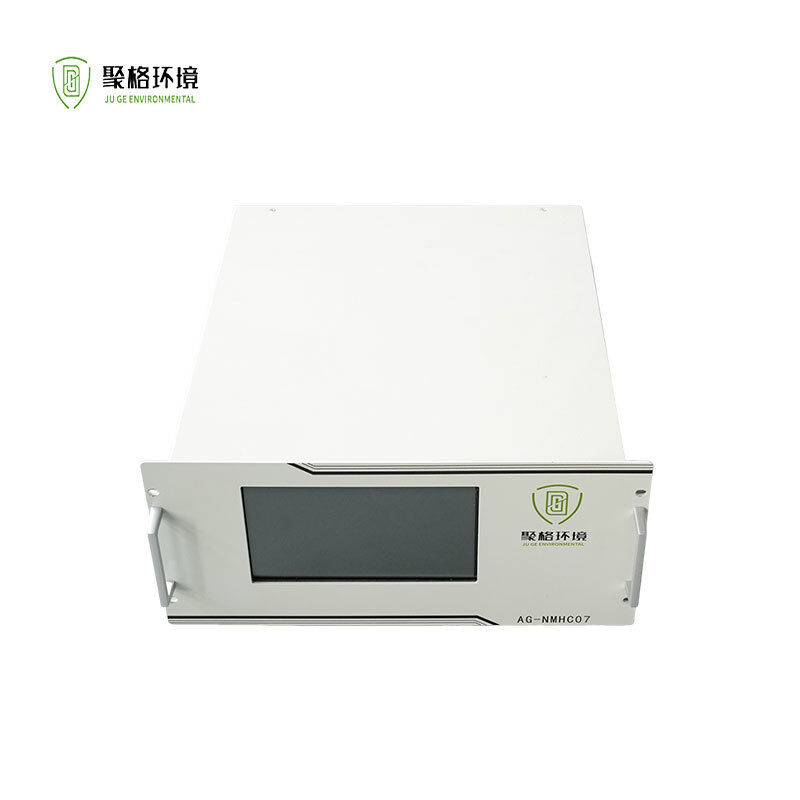

The AG-NMHC07 Analyzer is a non-methane hydrocarbon (NMHC) emission monitoring system based on catalytic oxidation and flame ionization detection (FID) principles. It provides real-time measurement of total hydrocarbons (THC) and non-methane hydrocarbons (NMHC) concentrations in industrial flue gases.

Product Overview

This analyzer is designed for monitoring organic compound emissions from stationary pollution sources across industries such as petrochemicals, chemical manufacturing, industrial coating, packaging/printing, rubber products, electronics, organic solvent production, automotive manufacturing, and others.

Key Features

Full thermal method with high-temperature analysis throughout the process, effectively preventing sample loss and ensuring accurate and reliable monitoring data
Fast response speed, short analysis cycle, and real-time data output
Simple and quick calibration operation, with calibration time as short as 30 seconds
Compliant with international standards and Chinese national standard HJ1013-2018
5U standard chassis design for easy integration
Integrated high-temperature pump in the analyzer, supporting direct connection via heated tubing
No carrier gas required
Simultaneous monitoring of NMHC, THC, and CH4
Automatic ignition and hydrogen cutoff after flame extinguishment, ensuring safety and reliability

Technical Specifications

Manufacturer	JUGE	Model	AG-NMHC07
Parameter	NMHC, THC, CH4	Size	500mm×482(435)mm×213mm (L×W×H)
Range	NMHC: (0-200)mgC/m³	Weight	25.2kg
Detect Limit	0.1mg/Nm³	Working Environment	(5~40)ºC (0~95)%RH
Analyzer Heating	120ºC	Sample Gas	80kPa-110kPa
Catalytic Temperature	200ºC	Hydrogen Supply	Purity: ≥99.99% Source: Hydrogen cylinder or hydrogen generator Pressure: 0.2 MPa
Repeatability	≤ 1%	Air Supply	Clean air, hydrocarbon concentration ≤0.3 mg/m³ Pressure: 0.4 MPa
Analysis Cycle	≤ 10s(, 300s)	Drive Gas	Dehumidified, dust-free, oil-free compressed air Pressure: 0.4 MPa
Zero Point Drift, Span Drift	≤±2%F.S./24h	Calibration Gas	Methane/propane single-component or mixed standard gas Pressure: 0.2 MPa
Linear Error	≤±1%F.S.	Power Supply	220 VAC, 50Hz
Catalytic Efficiency	≥98%	Power Consumption	500w, 150W
CH4 Retention Rate	≥98%	Communication Protocol	Modbus
