Online Monitoring CEMS Solutions Ammonia Slip NH3 Laser Gas Analyzer

Brand Name:	JUGE
Model Number:	AG-NH07
MOQ:	1 Unit
Price:	USD5000-10000
Payment Terms:	T/T,Online order
Supply Ability:	100 Unit/Week

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Product Name:

CEMS For NH3

Range:

0-20ppm OEM

Display Error:

≤±5%

Drift:

≤±2.5%F.S

Indication Error:

≤ 2%

24h Zero Drift:

≤ ±1% F.S.

24h Span Drift:

≤ ±1.5% F.S.

Packaging Details:

Neutral carton

Highlight:

NH3 cems solutions

Ammonia cems solutions

NH3 cems gas analyzer

Product Description

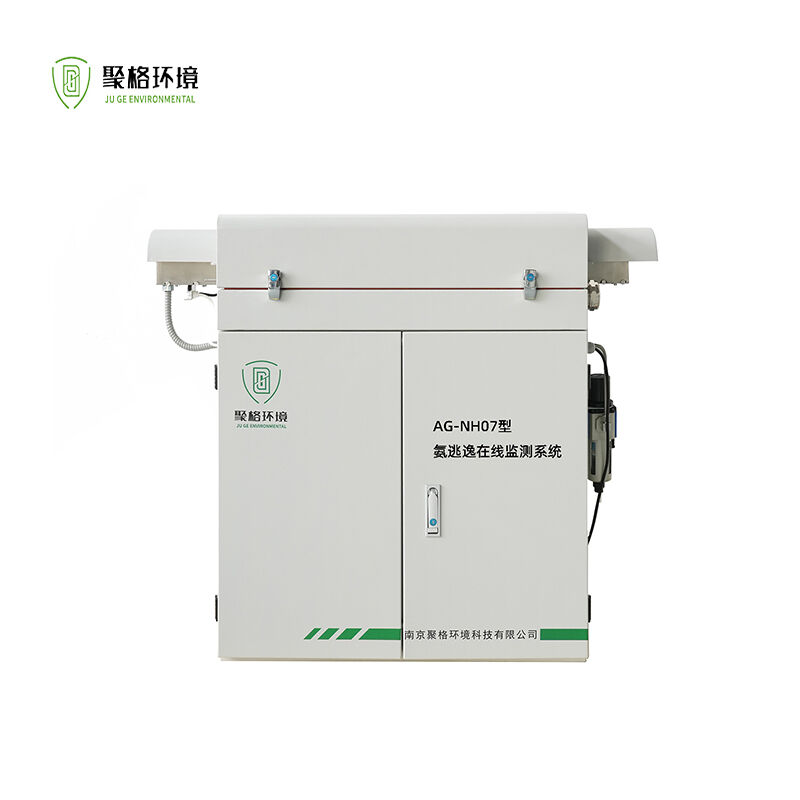

CEMS Ammonia Slip Online Monitoring System NH3 Laser Gas Analyzer

>>Overview

This system is primarily used for denitrification process control in various industrial sectors, such as coal-fired power plants, aluminum plants, steel mills, smelters, waste-to-energy plants, cement plants, chemical plants, glass factories, and more.

The system is based on Tunable Diode Laser Absorption Spectroscopy (TDLAS) technology, utilizing the characteristic absorption of specific laser wavelengths by gas molecules. It analyzes the change in laser absorption intensity to determine the gas concentration.

>>Feature
1) Self-diagnosis and alarm function.
2) Laser absorption spectroscopy with minimal background interference and fast response.
3) High detection sensitivity and low resolution.
4) Built-in long optical path design to solve interference issues.
5) Low system maintenance cost and minimal maintenance.
6) High structural stability, adaptable to various environments.

>>Main technical parameters

Working condition	Power supply	220vac,<3kw
	Sweeping gas	(0.4~0.6) MPA compressed air
	Ambient temperature	-20ºC~55ºC
Performance index	Light path length	760mm
	Range	0~100 (ppm or mg/m3) (range-adjustable)
	T90 response time	<300 seconds
	Reading error	≤ ± 5% (nominal value)
	Repeatability	≤ ±2% F.S
	Drift	≤ ±2.5% F.S
	Protection level	Ip55
	Preheating time	120min
Functional parameter	Digital output	RS485
	Analog output	4 -20 ma maximum load of 500Ω
	Switch output	Load capacity: Ac / DC 24V / l A; Backback signal, low instrument wind pressure, abnormal temperature alarm, etc. (customizable)
	Sample gas temperature	<600ºC
Other parameters	Sample gas pressure	Atmospheric pressure of ± 5 KPA
	Sampling traffic	2-3l/min
	Ambient temperature	-10~55ºC
	Ambient pressure	70~120kpa
	Outline dimension	(950h×1160l×325w)mm
	Weight	120kg

>>System composition

No.	Name	Model and specification	Quantity	Unit
1	Pre-processing cabinet	Pre-treatment and control devices	1	Set
1.1	Analysis Cabinet	950H×1160L×325W mm	1	Set
1.2	Electromagnetic valve	DC24v, normally closed	2	Set
1.3	Injection pump	8l/min	1	Set
1.4	High-temperature precision filter	0.2um	1	Set
1.5	Control circuit	Including automatic sampling, back-blowing, and temperature control	1	Set
1.6	High temperature cut-off valve	BTB-DN10, with a pneumatic valve	1	Set
2	Analytic system	NH3 analyzer	1	Set
3	Heated-type sampling probe	AG-TT07	1	Set
4	Sampling heat tracing pipeline	60w/m	3	Set
5	Spare part	See the list of spare parts	1	Set
