Portable Gas Detector with Wireless Printing Electrochemical Measurement and 4G Data Transmission Air Quality Analyzer

Brand Name:	JUGE
Model Number:	AG600-AQMS/B
MOQ:	1 Unit
Price:	USD1000-5000
Payment Terms:	T/T
Supply Ability:	1000 Unit/Week

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Name:

Portable Air Quality Analyzer

Pollutant Factor Measurement Method:

Electrochemical, PID Photoionization, Metal Oxide MOS

Gas:

OEM

Packaging Details:

Neutral carton

Highlight:

Nitrogen Portable Gas Detector

Carbon Portable Gas Detector

Carbon Oxide ambient air analyzer

Product Description

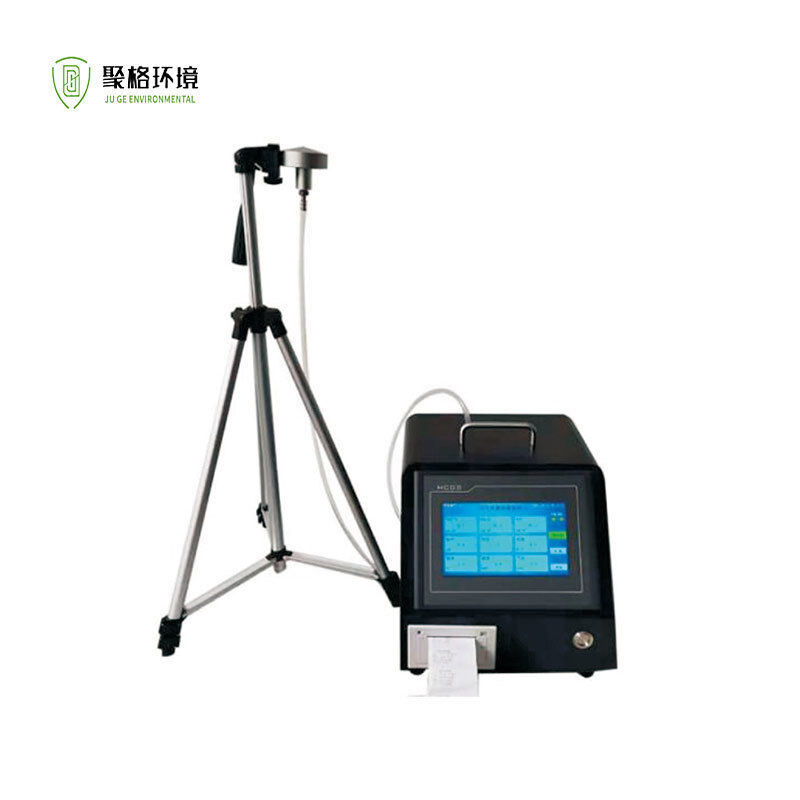

Portable Air Quality Analyzer Wireless Printing Odor Gas Inorganic Gas Nitrogen Oxides Carbon Oxides Detector

Product Overview

Advanced portable air quality analyzer featuring wireless printing capabilities for comprehensive detection of odor gases, inorganic gases, nitrogen oxides, carbon oxides, and various environmental pollutants.

Key Features

Array Combination: Mixed sensor array combining multiple sensors capable of detecting over a dozen odor factors with gas cross-array analysis
Constant Flow Control: Flow feedback system ensures stable sampling and improved accuracy
Data Stability: Temperature and humidity sensing with gas cross-interference algorithms, zero drift and span calibration
Dynamic Dehumidification: Optional dynamic heating dehumidification sampling system to minimize humid environment impact
Data Transmission: 4G, RS232/RS485 connectivity options
Data Export: USB port and SD card support with local storage capacity exceeding 530,000 records
Wireless Printing: Supports wireless mini printing for on-site report generation
Information Quality Control: Comprehensive equipment information management, data management, and quality control functions
Display Method: Local LCD display with debugging functionality
Multi-stage Filtration: Two or more filtration stages to protect sensor accuracy from gas impurities
GIS Display: Real-time and historical monitoring data integration with geographic information maps
Multiple Modes: Flexible networked management modes including LAN, open network, and cloud database management
Expandability: Optional meteorological parameter instruments, automatic sampling systems, and alarm devices
Open Interface: Free communication and integration with other devices and software
Built-in Database: Preloaded odor concentration (OU) detection database with user-defined database capabilities

Technical Specifications

Parameter	Description
Pollutant Factor Measurement Method	Electrochemical, PID photoionization, Metal oxide MOS
Odor Gas Measurement Parameters	NH₃, H₂S, C₃H₉N, CH₄S, C₂H₆S, C₂H₆S₂, CS₂, C₈H₈, dimensionless OU value (ten odor parameters)
Measurement Concentration Range	Inorganic gas: 0-1000 ppm; OU value: 0-30000
Measurement Concentration Accuracy	0.1 ppm and 1
Data Transmission	4G transmission, uploadable to data platform, standard HJ212-2017 protocol
Wireless Printing	Thermal printing, supports on-site printing
Power Supply	AC 220V
Sampling Method	USB, wireless 4G, etc.
Expandable Gases	Nitrogen oxides: NO, NO₂, NOX Carbon oxides: CO, CO₂ Sulfur-containing gases: SO₂, H₂S, CS₂, CH₄S, C₂H₆S, C₂H₆S₂ Halogen gases: Cl₂, F₂, I₂, HCl, HF, ClO₂ Other inorganic gases: O₃, HCN, PH₃, AsH₃, NH₃, N₂H₄, SiCl₄, SiH₂Cl₂, CₙH₂ₙ₊₂ Organic gases: CH₂O, C₃H₇NO, ETO, benzene series, non-methane total hydrocarbons, VOCs, acrylonitrile, methane, ethane, methyl ketone, natural gas, (CH₃)₃N, CH₃SH, (CH₃)₂S₂, tetrahydrothiophene, C₈H₈, C₃H₉N, etc.
