| Brand Name: | JUGE |
| Model Number: | AG600-BX/W |
| MOQ: | 1 Unit |
| Price: | USD500-1000 |
| Payment Terms: | T/T,Online order |
| Supply Ability: | 1000 Unit/Week |

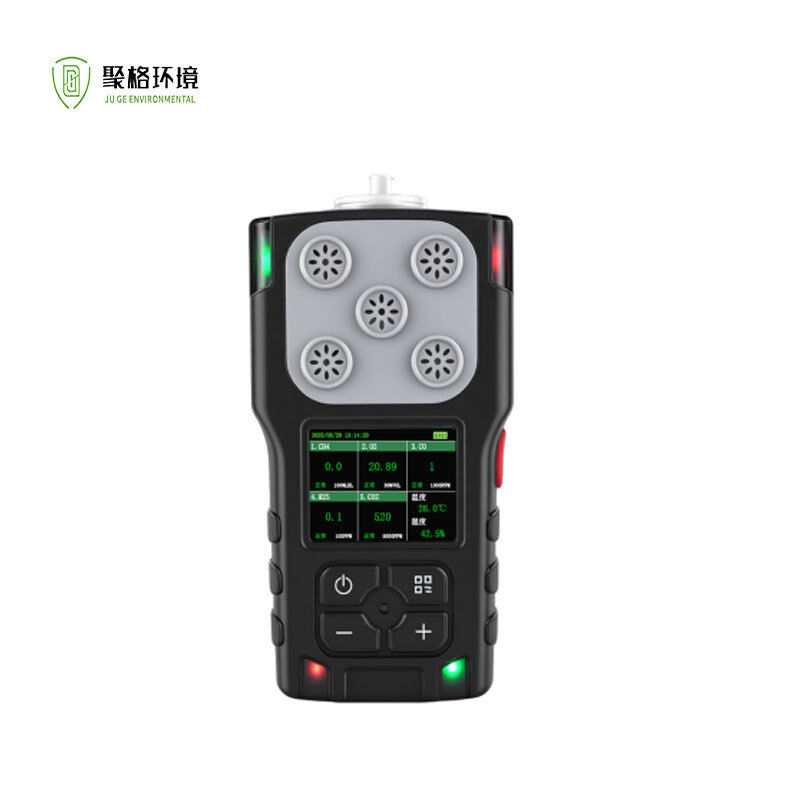

The Composite Gas Detector is a high-performance gas detection and alarm device capable of detecting multiple gases (including carbon monoxide, combustible gases, oxygen, hydrogen sulfide, and other toxic gases). It can be widely used in industries such as mining, metallurgy, chemical engineering, firefighting, municipal services, and wastewater treatment.
• Supports Chinese and English display interface
• Supports two air intake modes: pump suction and diffusion
• Capable of collecting data from up to 5 gas sensors along with environmental temperature and humidity
• Automatically measures and displays STEL, TWA, Max, and Min values
• Built-in gravity sensor and temperature & humidity sensor
• Fall alarm and SOS one-touch alarm function
• Color LCD screen with an aesthetically pleasing display
• Screen can automatically flip 180° to facilitate data viewing in various scenarios
• Built-in sampling pump enables sampling distances of up to 3 meters
• Supports over 30 types of smart sensors with plug-and-play functionality
• USB Type-C interface for convenient charging and communication
• Can store up to 120,000 historical data records and 30,000 alarm records, with easy data export
• Optional wireless communication modules: Wifi, Lora, 4G, etc.
• Durable and shock-resistant design, the instrument itself can withstand a 3-meter drop
>>Main technical parameters
|
Sensor |
Supports sensors including Electrochemical, NDIR (Infrared), PID, Catalytic Combustion, etc |
|
Unit Display |
ppm,ppb,mg/m3,ug/m3,%VOL,%LEL |
|
Battery |
Rechargeable lithium battery, charging time less than 7 hours, supports up to 10 hours of operation |
|
Real-time Display |
Can read and display gas concentration, temperature & humidity, current time, and battery status in real time |
|
Display Screen |
2.0-inch color LCD, resolution 320*240 |
|
Alarm Methods |
Audible and visual alarm, vibration, SOS one-touch alarm, fall alarm |
|
Sampling Method |
Integrated pump suction and diffusion type, or separate pump suction and diffusion sampling modes |
|
Calibration Method |
Manual calibration with standard gas |
|
Data Storage |
Automatic storage, storage interval adjustable (5~600 seconds) |
|
Battery Power / Capacity |
3.7V/2400mAh |
|
Data Interface |
Type-C interface: 5VDC/500mA, shared USB communication and charging |
|
Temperature & Humidity |
-20℃~50℃; 0~95%RH (Non-condensing) |
|
Protection Grade |
IP65 |
|
Safety Certification |
China Certification: Ex ia IIC T4 Ga |
|
Warranty Period |
1-year warranty for the whole unit |
|
Dimensions |
142.5×78.2×41.6mm(excluding gas filter and back clip) |
|
Weight |
380 g |
|
Housing Material |
PC + TPE (Plastic overmolding process) |
>>List of Commonly Detected Gas Types
|
Sensor |
Range |
Resolution |
|
PID |
0-1000ppm |
0.1ppm |
|
O2 |
0-30%Vol |
0.1Vol |
|
LEL |
0-100%LEL |
1%LEL |
|
CH4 |
0-100%LEL |
1%LEL |
|
CH4 |
0-100%Vol |
0.1%Vol |
|
CO2 |
0-50000ppm |
1ppm |
|
CO |
0-1000ppm |
1ppm |
|
0-2000ppm |
1ppm |
|
|
H2S |
0-100ppm |
0.1ppm |
|
0-200ppm |
0.1ppm |
|
|
0-1000ppm |
1ppm |
|
|
NH3 |
0-100ppm |
1ppm |
|
Cl2 |
0-50ppm |
0.1ppm |
|
ClO2 |
0-1ppm |
0.01ppm |
|
H2 |
0-1000ppm |
10ppm |
|
HCl |
0-15ppm |
0.1ppm |
|
HF |
0-10ppm |
0.1ppm |
|
HCN |
0-100ppm |
0.1ppm |
|
NO |
0-250ppm |
1ppm |
|
NO2 |
0-20ppm |
0.1ppm |
|
PH3 |
0-20ppm |
0.1ppm |
|
SO2 |
0-20ppm |
0.1ppm |
|
C2H4O |
0-100ppm |
1ppm |
|
ETO |
0-100ppm |
0.1ppm |
|
CH3SH |
0-10ppm |
0.1ppm |
|
HCHO |
0-10ppm |
0.01ppm |
|
0-100ppm |
0.1ppm |
|
|
F2 |
0-5ppm |
0.01ppm |
|
THT |
0-50ppm |
0.1ppm |
|
COCl2 |
0-1ppm |
0.01ppm |
|
CH3OH |
0-100ppm |
0.1ppm |
|
O3 |
0-5ppm |
0.02ppm |
|
CO+H2S |
0-500ppm(CO) |
1ppm |
|
0-200ppm(H2S) |
0.1ppm |
|
|
SO2+H2S |
0-20ppm(SO2) |
0.1ppm |
|
0-100ppm(H2S) |
0.1ppm |
Remark: Customized alarm setting points and detection ranges are also available.
