| Brand Name: | JUGE |
| Model Number: | AG-YMini07 |
| MOQ: | 1 Unit |
| Price: | USD1000-5000 |
| Payment Terms: | T/T,Online order |
| Supply Ability: | 100 Unit/Week |

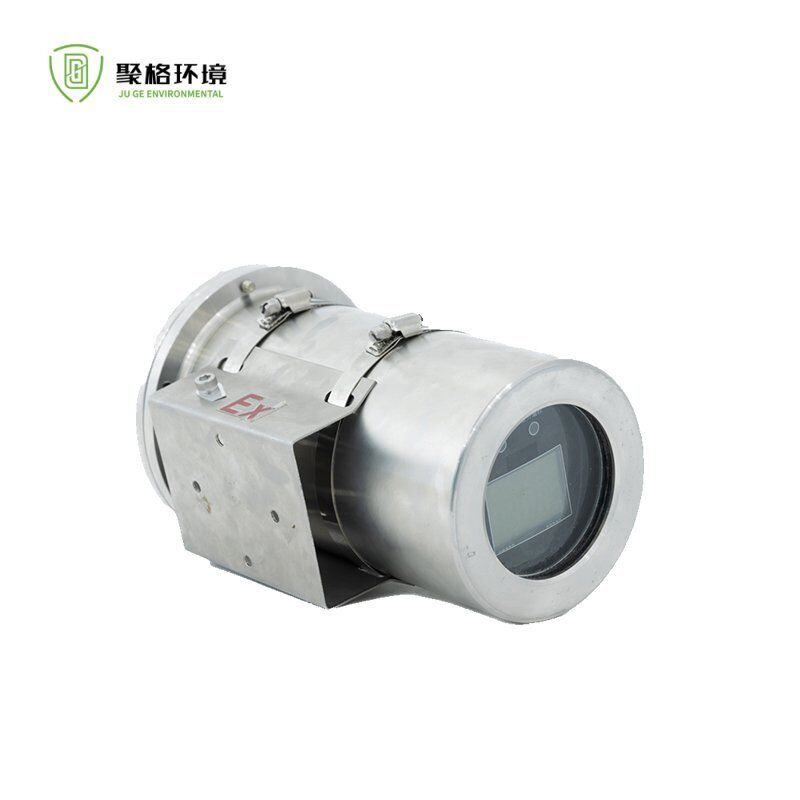

This terminal is an advanced instrument manufactured by our company, featuring wireless data transmission capability and designed for monitoring gas concentrations in urban underground confined spaces. The terminal employs laser sensor and microcomputer technology, combined with low‑power design. It offers advantages such as low energy consumption, intuitive display, good repeatability, long service life, easy installation, simple maintenance, and convenient operation. Powered by a battery, it can transmit gas concentration data, alarm types, and other information via the existing cellular communication network on a timed or event‑triggered (alarm) basis to a data center. Together with the system software, it enables statistics, query, backup, and other maintenance tasks for gas concentration information at each monitoring point.
>>Application
This terminal is suitable for pump‑suction based interval sampling, monitoring, and early warning of gas concentrations in urban underground confined spaces such as gas valve pits, water supply and drainage wells, power utility wells, and communication manholes.
● Monitoring of gas concentration status, water immersion detection, and temperature detection;
● Embedded integrated circuit + intelligent software;
● Mobile NB‑IoT communication module, telecom NB‑IoT SIM card, underground pipeline communication;
● Unattended operation, remote intelligent real‑time and accurate alarm;
● Electronic map display of location, basic information, and real‑time status;
● NB‑IoT wireless communication technology for cloud data exchange;
● Remote monitoring interface, mobile phone / PC client, WeChat, and SMS alarm;
● Low‑power design, battery powered – battery life up to 3 years, maintenance‑free;
● Real‑time data, historical data, and curve display;
● Data export function via the platform;
● Intrinsically safe equipment suitable for use in explosive atmospheres;
● IP68 protection rating, dust‑tight and waterproof.
>>Main technical parameters
| Power Supply | Lithium battery |
| System Principle | Operating mode configurable |
| Sensor Type | Laser sensor |
| Detection Parameters | CH₄: 0‑100% LEL; Temperature: -40℃ to 125℃; Water level |
| Operating Temperature | -30℃ to 70℃ |
| Operating Humidity | ≤100% RH, non‑condensing |
| Detection Accuracy | CH₄: ±5% F.S.; Temperature: ±2℃ |
| Display | LCD digital display |
| Battery Service Life | ≥ 18 months (standard operating mode) |
| Explosion‑proof Type | Intrinsically safe |
| Protection Rating | IP68 |
| Product Weight | Approx. 4.2 kg |
| Data Transmission | 4G, NB‑IoT data upload |
