| Brand Name: | JUGE |
| Model Number: | AG600-TH |
| MOQ: | 1 Unit |
| Price: | USD100-500 |
| Payment Terms: | T/T |
| Supply Ability: | 1000 Unit/Week |

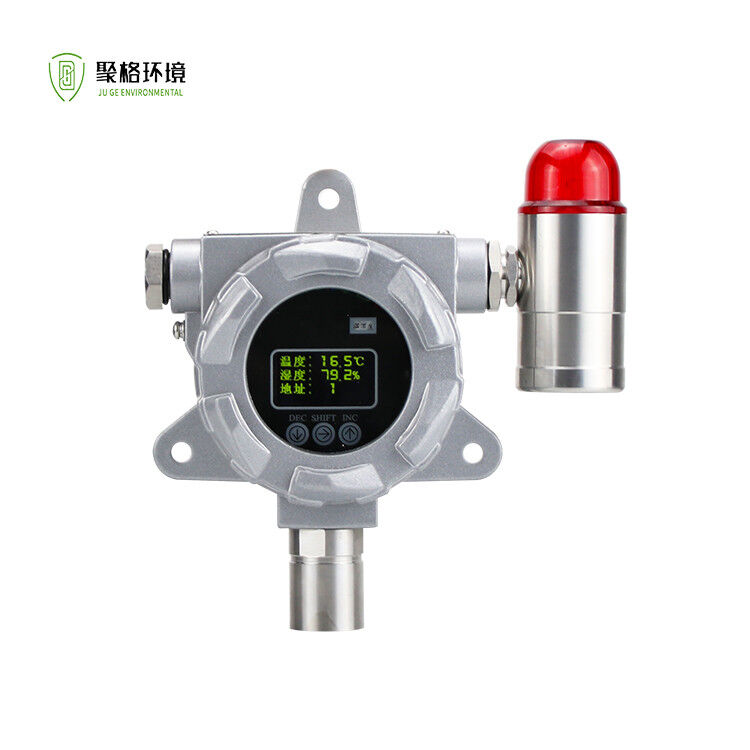

Featuring an OLED display, this device simultaneously measures ambient temperature and humidity, presenting data digitally. Its modular design allows easy replacement of the motherboard module and sensor module for simplified maintenance. Supports dual-channel 4-20mA and RS485 outputs for simultaneous analog transmission of temperature and humidity signals. The detector includes two relay outputs (passive and active) for seamless integration with alarms, fans, and other external devices. Units are displayed in ℃ and %RH, with control via infrared remote. Features power, fault, and alarm indicators. Equipped with a robust triple waterproof design, it is suitable for harsh environments such as underground utility tunnels, building automation, HVAC climate monitoring, warehouses, medical facilities, ventilation ducts, greenhouses, and other applications requiring precise air temperature/humidity measurement and control.
Applications
Ideal for underground pipelines, HVAC systems, smart buildings, agriculture, pharmaceuticals, logistics, and industrial ventilation where precise environmental monitoring is critical.
>>Main technical parameters
| Measuring Range | Temperature: (-40 to 80)°C; Humidity: (0 to 100)%RH |
| Accuracy |
Temperature: ≤ ±1°C; Humidity: ≤ 2%RH |
| Display Type |
Digital tube, LED display |
| Operation Mode |
Infrared remote control |
| Input Voltage | 24V |
| Power Consumption | <2.5W |
| Signal Output | RS485 bus signal; 4-20mA output |
| Communication Frequency |
9600bps (RS485 mode) |
| Relay Output |
Passive output (1 set), Active output (1 set) (simultaneous control) |
| Warm-up Time | 10s |
| Response Time |
T90 ≤30s |
| Recovery Time |
≤20s |
| Operating Pressure |
86-106 kPa |
| Protection Rating |
IP66 |
| Material |
Precision-cast aluminum alloy, surface coating |
| Installation |
Wall-mounted (customizable mounting bracket available) |
| Dimensions |
162mm(L) × 142mm(W) × 92mm(H) |
| Weight |
Approx. 1.26 kg |
