Electrochemical Multi Fixed Gas Detector For Combustible Gas LEL H2S CO O2 Ex Leakage

Brand Name:	JUGE
Model Number:	AG600
MOQ:	1 Unit
Price:	USD100-1000
Payment Terms:	T/T,Online Order
Supply Ability:	100 Unit/Week

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Name:

Gas Detector

Detect Gas:

H2S CO O2 EX, OEM

Unit:

PPM, %LEL, %VOL, Mg/m³

‌Detection Principle‌:

Electrochemical, Infrared, PID Etc..

Range:

0-100%LEL/PPM/%VOL

Packaging Details:

Neutral carton

Highlight:

LEL Fixed Gas Detector

Electrochemical Fixed Gas Detector

Electrochemical fixed combustible gas detector

Product Description

Fixed Multi Gas Leak Detector For Composite Gas LEL H2S CO O2 Ex Gas Detection

>>Overview

Our company's online gas detector utilizes original imported smart gas sensors, serving as an intelligent, high-performance instrument capable of continuous online monitoring of combustible gases, toxic/hazardous gases, and specialty gases.
Featuring an integrated flameproof enclosure structure, the detector delivers high sensitivity and precision. Through connection to a GDS gas alarm controller and monitoring management software, it enables real-time concentration display on computers. Additionally, by incorporating an optional wireless module, real-time monitoring data and alarm status can be transmitted to safety control centers.

>>Features

◆ ‌Original imported high-performance sensors‌ ensure high measurement accuracy, excellent repeatability, and extended service life.

◆ ‌Independent AD chip‌ effectively resists electromagnetic interference and filters disruptive wavelengths.

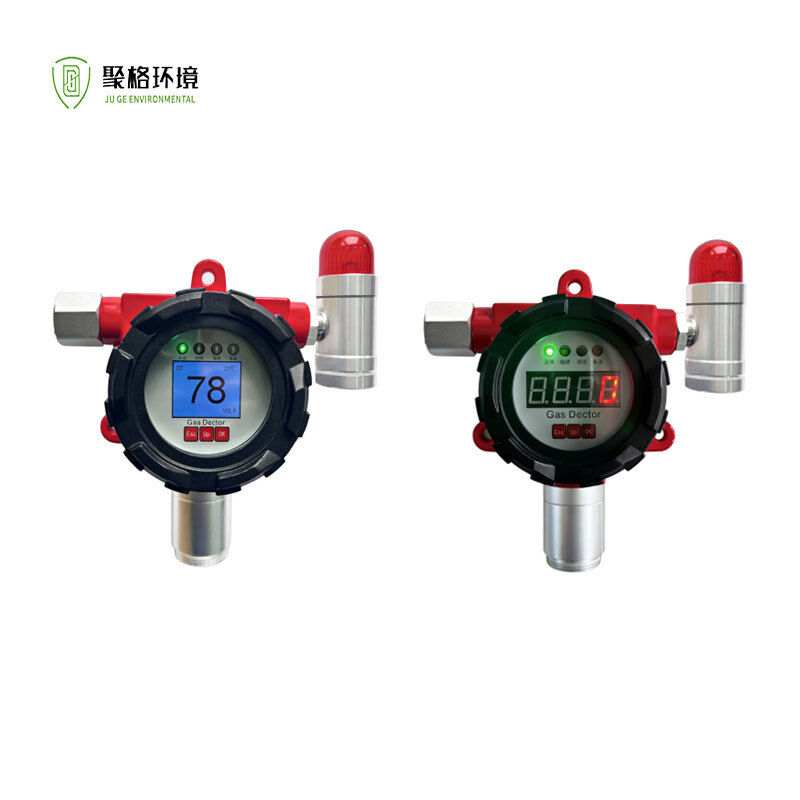

◆ Instrument supports ‌dual displays (LED digital tube & LCD)‌, compliant with the latest national standards.

◆ Multiple selectable units: ‌mg/m³, ppm, VOL%, LEL%‌, etc.

◆ ‌AI-based temperature/humidity compensation algorithm‌ minimizes measurement errors.

◆ ‌Automatic protection‌ against high-concentration gas impact; features ‌factory reset function‌ to prevent misoperation.

◆ ‌Infrared remote control‌ enables operation without opening the enclosure – simple and convenient.

◆ Configurable outputs: ‌3-wire 4-20mA‌, ‌RS485‌, relay contacts; supports ‌HART protocol‌.

◆ ‌IP66 protection rating‌ for harsh industrial environments.

◆ ‌Triple explosion-proof certification‌ (Ex db ib IIC T6 Gb / Ex ib tb IIIC T80°C Db) – Certified by National Explosion-proof Electrical Testing Center.

>>Main technical parameters

Detection Principle	Constant potential electrolysis, NDIR infrared optics, Catalytic combustion, PID photoionization, Laser TDLAS
Measuring Range	0-10, 0-100, 0-1000 (Customizable range)
Unit	PPM, mg/m³, LEL%, VOL%, etc.
‌Resolution‌	0.1,0.01,0.001
‌Sampling Method‌	Free diffusion type – Online continuous detection with free diffusion method.
‌Installation Method‌	Wall-mounted; Pipeline-mounted (clamp-on or insertion type, with external threads)
Indication Error	≤±3% F.S
Repeatability	≤±2% (F.S/year)
Zero Drift	≤±1% (F.S/year)
Response Time‌	≤20 seconds (T90) (higher requirements depend on sensor performance)
‌Recovery Time‌	≤10 seconds (T90) (higher requirements depend on sensor performance)
Power Supply	12-36 VDC
‌Power Consumption‌	≤2.5 W (at DC24V)
‌Environmental Pressure	80 kPa ~ 120 kPa
‌Environmental Temperature	-30℃～+50℃ (Typical), -40℃～+80℃ (Limit) (For higher temp/humidity environments, our pre-conditioning gas monitoring system is available)
Environmental Humidity‌	10%~95% RH (non-condensing)
‌Main Material‌	① Housing: ADC12 aluminum alloy with Teflon paint finish, wear/corrosion-resistant (316L stainless steel housing optional for harsh environments) ②Gas Chamber: High-strength, wear/corrosion-resistant aluminum profile; External thread M351.5
Output Signal‌	① 3-wire 4-20mA current output (compatible with controllers, PLC, DCS) ② RS-485 digital output ③ 2 relay alarm outputs (high/low segments): Passive contact, 30V 1A / 125VAC 0.5A ④ HART output (Optional, configurable)
Signal Transmission	Shielded three-core (or four-core) cable; maximum transmission distance: 1000-2000 meters
Alarm Method	Audible and visual alarm (optional, alarm sound <90 dB)
Direct Reading	Measured value, max/min values
Data Download	RS485 serial port for data export
Calibration	2-4 point calibration; customizable calibration values
Explosion-proof Electrical	① M20 internal thread (Optional: 1/2"NPT, G3/4, G1/2 internal threads) ② Explosion-proof cable gland (Optional, certified)
Explosion-proof Mark	Ex db ib IIC T6 Gb,Ex ib tb IIIC T80°C Db
Protection Level	IP66
Dimensions	180 mm (H) × 140 mm (W) × 92 mm (D)
Weight	Approx. 1.6 kg (aluminum alloy housing)
Compliance Standards	GB15322.1-2003, GB3836.1-2010, GB3836.2-2010
Quality Assurance	1-year warranty; free repair during warranty period

>>List of Commonly Detected Gas Types

NO	Detection	Range	Accuracy	T90 Response time	Resolution	Alarm set point (low/high)
1	PH3	0 – 5 ppm	±5% (F.S)	≤ 25 s	0.01 ppm	0.3 ppm/5 ppm
2	O2	0-30%Vol	±5% (F.S)	≤ 15 s	0.10% Vol	18.0%Vol/23.0%Vol
3	EX	0-100% LEL	±5% (F.S)	≤ 15 s	1% LEL	25.0%/50.0% LEL
4	CO	0 - 2000 ppm	±5% (F.S)	≤ 25 s	1 ppm	50 ppm/100 ppm
5	H2S	0 -100 ppm	±5% (F.S)	≤ 30 s	1 ppm	10 ppm/20 ppm
6	SO2	0 - 100 ppm	±5% (F.S)	≤ 30 s	0.1 ppm	2 ppm /10 ppm
7	CI2	0 - 20 ppm	±5% (F.S)	≤ 30 s	0.1 ppm	1 ppm /10 ppm
8	NH3	0 – 200 ppm	±5% (F.S)	≤ 50 s	1 ppm	25 ppm /50 ppm
9	NO2	0 - 20 ppm	±5% (F.S)	≤ 25 s	0.1 ppm	3 ppm/10 ppm
10	NO	0 - 250 ppm	±5% (F.S)	≤ 60 s	1 ppm	25 ppm/50 ppm
11	H2	0 - 1000 ppm	±5% (F.S)	≤ 60 s	1 ppm	50 ppm /100 ppm
12	HCN	0 - 50 ppm	±5% (F.S)	≤ 200 s	0.1 ppm	10 ppm /20 ppm
13	HCL	0 - 20 ppm	±5% (F.S)	≤ 60 s	0.1 ppm	5 ppm /10 ppm
14	CH4	0 - 5% Vol	±5% (F.S)	≤ 60 s	0.1% Vol	customized
15	CO2	0 - 5% Vol (0-5000ppm)	±5% (F.S)	≤ 60 s	0.01% Vol (1 ppm)	customized
16	PID(VOCs)	1-1999 ppm	±5% (F.S)	≤ 20 s	0.1 ppm	customized
17	C3H8	0 - 5%Vol	±5% (F.S)	≤ 60s	0.01% Vol	customize
18	O3	0 – 5 ppm	±5% (F.S)	≤ 30s	0.02 ppm	1ppm/2 ppm
19	SF6	0 – 1000 ppm	±5% (F.S)	≤ 60s	0.2ppm	25ppm/50 ppm
20	HF	0 – 10 ppm	±5% (F.S)	≤ 60s	0.1ppm	3ppm/10 ppm

Remark: Customized alarm setting points and detection ranges are also available.
