| Brand Name: | JUGE |
| Model Number: | AG600-BX-400 |
| MOQ: | 1 Unit |
| Price: | USD250 |
| Payment Terms: | T/T,Online Order |
| Supply Ability: | 10000 Unit/Week |

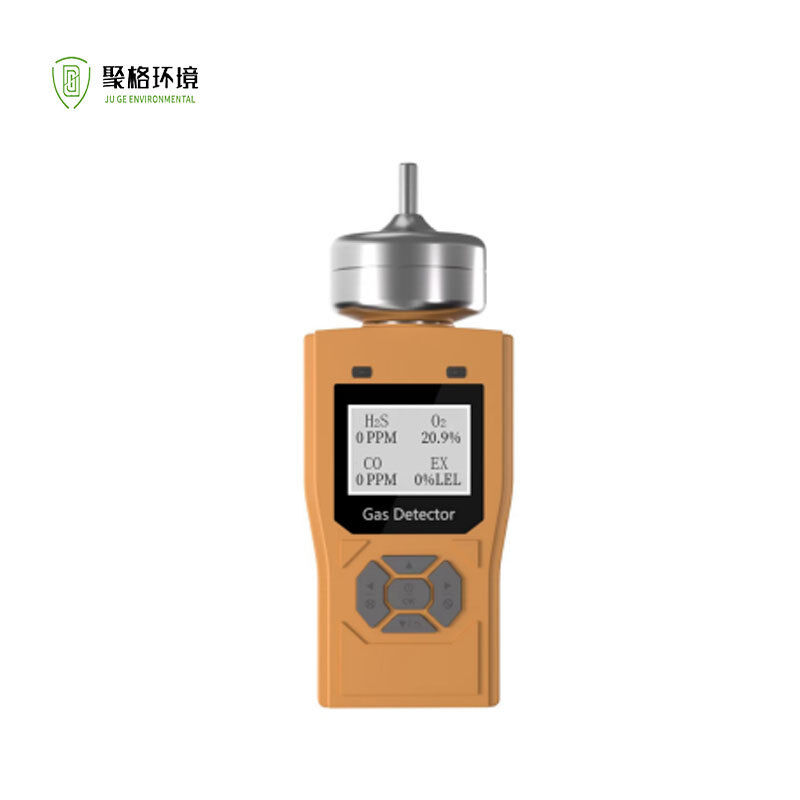

This detector utilizes advanced integrated circuit technology, embedded microprocessor chip control, and a built-in high-resolution ADC dedicated chip for detection. It offers faster calculation speeds, resulting in more accurate and stable test data. The detector features an LCD dot-matrix screen, and with the Chinese/English interface and voice prompts, users can quickly become familiar with the instrument. Operation and maintenance are simple. It is equipped with a Type-C charging interface, a built-in 3000mAh high-capacity lithium battery, a micro vacuum pump, and high-quality imported gas sensors, providing excellent sensitivity and outstanding repeatability. With fast response speed, strong anti-interference ability, and stable and reliable performance, it is at the leading domestic level.
This detector can be widely used in locations requiring detection of flammable, explosive, toxic, and hazardous gases, such as in metallurgy, petroleum, chemical engineering, mining, coking, municipal services, environmental protection, pharmaceuticals, electric power, shipping, and wastewater treatment.
>>Main technical parameters
|
Standard Gas Parameters |
||||
|
Type |
Range |
Low Alarm |
High Alarm |
Resolution |
|
EX |
0-100%LEL |
20%LEL |
50%LEL |
1%LEL |
|
O2 |
0-30%VOL |
19.5%VOL |
23.5%VOL |
0.1%VOL |
|
H2S |
0-100PPM |
10PPM |
35PPM |
1PPM |
|
CO |
0-1000PPM |
50PPM |
150PPM |
1PPM |
|
Note: The default configuration is a 4-in-1 gas combination. Please contact the company for other gas combinations. |
||||
|
Detector Parameter |
||||
|
Detection Principle |
Catalytic combustion, Electrochemical, Infrared, PID (Determined by the instrument's sensor configuration) |
|||
|
Display Error |
≤±5%F.S |
|||
|
Response Time |
≤30S |
|||
|
Display Method |
LCD dot-matrix liquid crystal display |
|||
|
Detection Method |
Pump suction / Diffusion type |
|||
|
Alarm Method |
Voice alarm, vibration alarm, light alarm |
|||
|
Product Material |
ABS |
|||
|
Operating Temperature |
-10℃ ~ +55℃ (Optional high-temperature sampling cooling filter handle available) |
|||
|
Operating Humidity |
10~95% RH (Non-condensing) |
|||
|
Operating Voltage |
DC 3.7V |
|||
|
Operating Pressure |
86~106KPa |
|||
|
Weight |
250g |
|||
|
Size |
185mm×75mm×35mm |
|||
|
Applicable Standards |
GB 15322.3-2019,GB 12358-2006,GB 3836.1-2010,GB 3836.2-2010,GB 3836.4-2010,JJG 693-2011,JJG 695- 2003,JJG 915-2008(Applicable standards vary depending on the instrument model). |
|||
