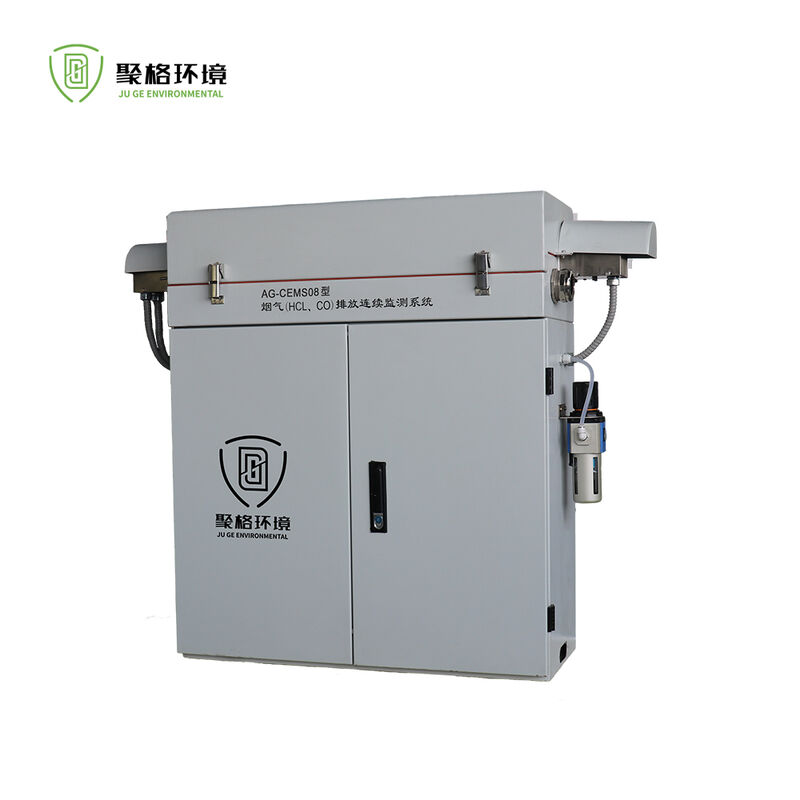

Laser HCl CO CEMS AEMS Continuous Emission Monitoring System For Waste Incineration

Brand Name:	JUGE
Model Number:	AG-CEMS08
MOQ:	1 Unit
Price:	USD10000-20000
Payment Terms:	T/T,Online order
Supply Ability:	100 Unit/Week

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

ISO9001 , CE

Product Name:

CEMS For HCl CO

Range:

0-100 Ppm/mg/m3

Display Error:

≤±5%

Drift:

≤±2.5%F.S

24H Zero Drift And Range Drift:

≤±2%F.S.

1week Zero Drift And Range Drift:

≤±2%F.S.

Packaging Details:

Neutral carton

Highlight:

HCl continuous emission monitoring system

Laser continuous emission monitoring system

Waste Incineration cems monitoring system

Product Description

Laser Gas Analyzer HCl CO CEMS Waste Incineration AEMS Monitoring Equipment Continuous Emission Monitoring System

>>Overview

Designed for the conditions of flue gas after waste incineration, industrial instruments are used for continuous online measurement of SO2, NO, NO2, CO, CO2, O2, NH3, HCl, H2O, flow rate, pressure, temperature, particulate matter, and other components. Additional measurement components can be added according to user requirements.

Mainly applied in domestic and international municipal waste incineration, hazardous waste incineration, medical waste incineration, sludge incineration, biomass boilers, thermal power plants, steel mills, and other high-temperature, high-humidity environments.

>>Feature
1) Self-diagnosis and alarm function.
2) Laser absorption spectroscopy with minimal background interference and fast response.
3) High detection sensitivity and low resolution.
4) Built-in long optical path design to solve interference issues.
5) Low system maintenance cost and minimal maintenance.
6) High structural stability, adaptable to various environments.

>>Main technical parameters

Working condition	Power supply	220vac,<3kw
	Sweeping gas	(0.4~0.6) MPA compressed air
	Ambient temperature	-20ºC~55ºC
Performance index	Light path length	760mm
	Range	0~100 (ppm or mg/m3) (range-adjustable)
	T90 response time	<300 seconds
	Reading error	≤ ± 5% (nominal value)
	Repeatability	≤ ±2% F.S
	Drift	≤ ±2.5% F.S
	Protection level	Ip55
	Preheating time	120min
Functional parameter	Digital output	RS485
	Analog output	4 -20 ma maximum load of 500Ω
	Switch output	Load capacity: Ac / DC 24V / l A; Backback signal, low instrument wind pressure, abnormal temperature alarm, etc. (customizable)
	Sample gas temperature	<600ºC
Other parameters	Sample gas pressure	Atmospheric pressure of ± 5 KPA
	Sampling traffic	2-3l/min
	Ambient temperature	-10~55ºC
	Ambient pressure	70~120kpa
	Outline dimension	(950h×1160l×325w)mm
	Weight	120kg

>>System composition

No.	Name	Model and specification	Quantity	Unit
1	Pre-processing cabinet	Pre-treatment and control devices	1	Set
1.1	Analysis Cabinet	950H×1160L×325W mm	1	Set
1.2	Electromagnetic valve	DC24v, normally closed	2	Set
1.3	Injection pump	8l/min	1	Set
1.4	High-temperature precision filter	0.2um	1	Set
1.5	Control circuit	Including automatic sampling, back-blowing, and temperature control	1	Set
1.6	High temperature cut-off valve	BTB-DN10, with a pneumatic valve	1	Set
2	Analytic system	HCL, CO analyzer	1	Set
3	Heated-type sampling probe	AG-TT07	1	Set
4	Sampling heat tracing pipeline	60w/m	3	Set
5	Spare part	See the list of spare parts	1	Set
