| Brand Name: | JUGE |
| Model Number: | AG8000 |
| MOQ: | 1 Unit |
| Price: | USD2000-5000 |
| Payment Terms: | T/T,Online order |
| Supply Ability: | 100 Unit/Week |

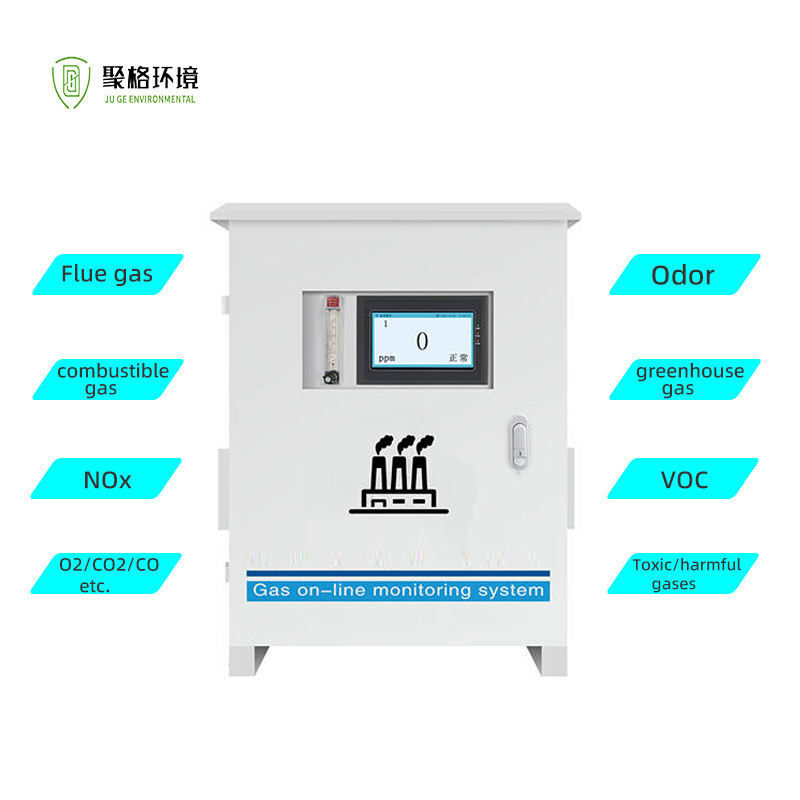

Comprehensive gas monitoring system featuring pump suction gas analyzer capable of detecting LEL, O₂, flue gas, VOC, CO₂, SO₂, NO₂, NH₃, H₂S and various other gases. Designed for industrial applications with high accuracy and reliability.
| Parameter | Description |
|---|---|
| Detected Gases | NH₃, H₂S, C₃H₉N, CH₄S, C₂H₆S, C₂H₆S₂, CS₂, C₈H₈, TVOC, OU (selected based on site conditions) |
| Detection Principle | Electrochemical; PID photoionization; Metal oxide MOS (varies by gas) |
| Detection Method | Pump suction |
| Display Method | 7-inch LCD color screen |
| Display Units | ppm, mg/m³ |
| Response Time | T90 ≤ 90 seconds |
| Output Signal | GPRS, 4-20mA, RS485 |
| Operating Temperature | -40°C ~ +60°C |
| Operating Humidity | ≤95% RH, non-condensing |
| Power Supply Voltage | AC220V ±15% 50Hz ±1% |
| Operating Pressure | 86~106 KPa |
| Measurement Range | 0-200 mg/m³ (optional; other ranges customizable) |
| Resolution | 0.1 mg/m³ |
| Accuracy | ≤3% FS |
| Warm-up Time | ≤90 seconds |
| Operation Method | Touch operation |
| Installation Method | Wall-mounted, pole-mounted |
| Protection Grade | IP54 |
| Applicable Standard | GB16808-2008 |
