Heavy Metals Flue Gas Continuous Monitoring System with X-ray Fluorescence for Lead Cadmium Copper CEMS

Name: Heavy Metals Flue Gas Continuous Monitoring System with X-ray Fluorescence for Lead Cadmium Copper CEMS
Brand: Nanjing Juge Environmental Technology Co., Ltd.
SKU: AG-HM07
Price: 85,000.00 USD
Availability: InStock

Brand Name:	JUGE
Model Number:	AG-HM07
MOQ:	1 Unit
Price:	USD70000-100000
Payment Terms:	T/T,Online order
Supply Ability:	100 Unit/Week

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Product Name:

CEMS For Heavy Metals

Range:

OEM

Accuracy:

±2% FS

Applicable Stack Size:

1-15m

Power:

DC24V

Measurement Method:

Energy Dispersive X-ray Fluorescence (EDXRF)

Parameter:

OEM

Packaging Details:

Neutral carton

Highlight:

Cadmium CEMS System

Fluorescence CEMS System

X Ray cems continuous emission monitoring system

Product Description

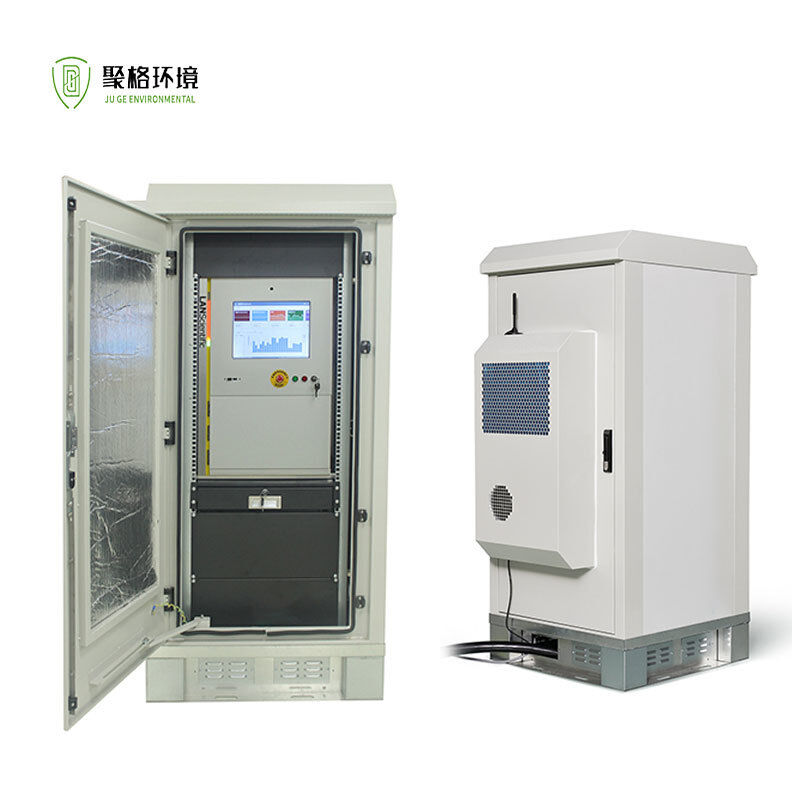

Heavy Metals Flue Gas Continuous Monitoring System X-ray Fluorescence CEMS For Lead Cadmium Copper

Overview

Heavy metals in flue gas primarily originate from smelters or lead-acid battery enterprises, spreading into the atmosphere through exhaust emissions. The heavy metals in flue gas include mercury (Hg), cadmium (Cd), thallium (Tl), antimony (Sb), arsenic (As), lead (Pb), chromium (Cr), cobalt (Co), copper (Cu), manganese (Mn), nickel (Ni), and their compounds.

These substances have a long residence time in the atmosphere, are not degraded by microorganisms, and can convert into highly toxic organometallic compounds, posing significant risks to human health and the environment.

The AG-HM07 online continuous monitoring system for heavy metals in flue gas is specifically developed by Longsun for heavy metal pollution from waste gas sources. The instrument employs heat-trace extraction technology and isokinetic sampling for particulate matter in flue gas. After reducing moisture and temperature to appropriate levels, particulate matter is automatically enriched on a roll-shaped filter membrane. A high-precision XRF analysis module then accurately calculates heavy metal concentrations in flue gas particulates, enabling continuous online monitoring of various heavy metal pollutants including lead, chromium, cadmium, and arsenic.

This system meets requirements for composition monitoring, emission supervision, and total pollution control of heavy metal pollution from waste gas sources. The system can also transmit monitoring data and information to environmental protection authorities to ensure pollutant concentrations and total emissions from discharging enterprises comply with standards.

Features

•Flexibility: Typically provides analysis results every 15 minutes. Sampling and analysis time is programmable, with real-time measurement results display for convenient on-site data viewing.
•Data Transmission: Equipped with multiple data transmission methods including RS232/485, USB, GPRS, ADSL, and Ethernet, enabling remote transmission, monitoring, and verification of operating parameters, status, and data.
•Safety: Professional multi-layer radiation protection ensures no radiation leakage from the instrument in any direction.
•Intelligence: Automatic quality control with built-in standard elements allows automatic checking of system long-term stability. No operator attendance required; operation and maintenance are simple. Apart from filter tape, essentially no other daily consumables.
•Alarm System: Equipped with intelligent alarm system including alarms for abnormal probe head temperature, abnormal condenser temperature, abnormal heating temperature, and low flow velocity.
•Data Storage: Instrument and system logging functions record various system operating status parameters, serving as basis for traceability of data accuracy and reliability.

Main Technical Parameters

Measurement Method	Energy dispersive X-ray fluorescence (EDXRF) for detecting metal content in airborne particulate matter
Main Detectable Elements	Ti, V, Cr, Mn, Fe, Co, Ni, Cu, Zn, Ga, As, Se, Sr, Pb, Rb, Mo, Hg, Ba, Cd, Sb, Sn - more than 20 elements
Host Dimensions	435 mm * 510 mm * 660 mm (L * W * H)
Host Weight	85 kg
Measurement Range	0 - 5000 μg/m³
Detection Limit	≤ 0.1 μg/m³
Linearity	Correlation coefficient ≥ 0.99
Gas Temperature	-20 ~ 600 °C
Gas Pressure	-20 ~ 50 kPa
Gas Flow Velocity	0 - 30 m/s
Sampling and Analysis Time	10 - 120 minutes (selectable)
Sampling Flow Rate	(0 - 5) L/min, adjustable, isokinetic sampling
Instrument Calibration	Automatic daily calibration
Filter Tape Replacement Cycle	1 month
Operating Environmental Conditions	Temperature: -20 ~ 50 °C; Humidity: 0 ~ 90% RH
Communication Interface	RS232 / RS485 / RJ45, configurable with GPRS module
Power Supply	220 VAC ±10% (50 ± 1 Hz)
