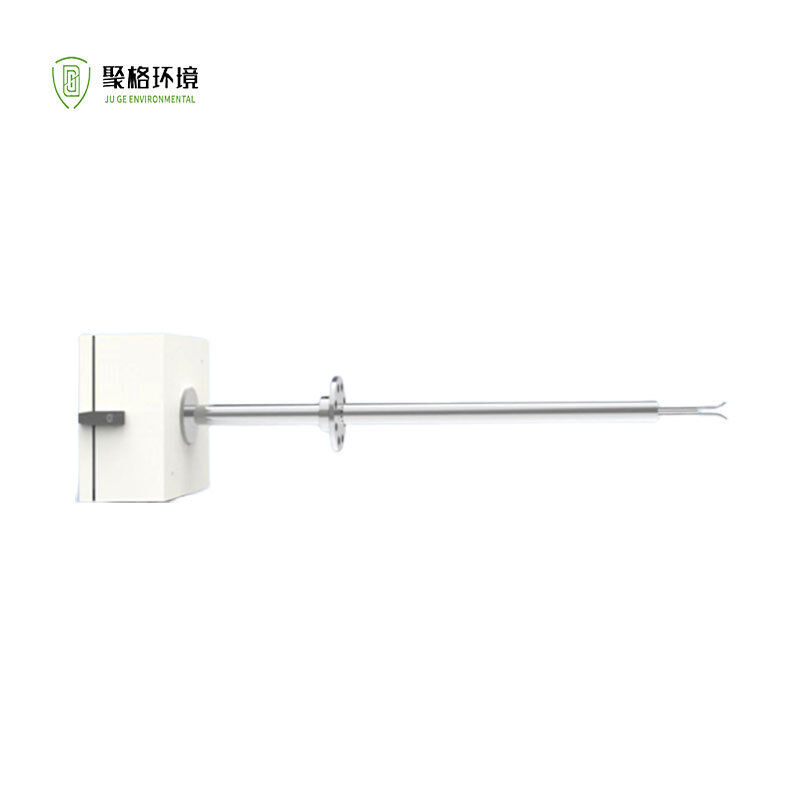

220V CEMS System Integrated Gas Temperature Pressure Flow Analyser

The integrated temperature-pressure-flow analyzer combines the monitoring of temperature, pressure, differential pressure, and flow velocity. It is mainly used for flow measurement of various clean gases, desulfurization flue gas, and denitrification flue gas in industrial process control and environmental monitoring.

>>Features

• Temperature measurement uses a platinum resistance temperature sensor.
• Pressure measurement uses a high-precision pressure sensor and a dedicated conversion circuit, which converts the signal into a corresponding pressure value.
• Flow velocity measurement adopts the pitot tube method. When measuring, the pitot tube probe is inserted into the pipeline so that the central axes of the total pressure and static pressure probes lie at the center of the flow cross‑section and align with the flow direction. The total pressure probe opening faces the incoming flow to detect the total pressure and transmits it to the differential pressure sensor. At the same time, the static pressure probe opening detects the static pressure and also transmits it to the differential pressure sensor. The sensor reads the values from the total pressure and static pressure openings and converts them into corresponding flue gas pressure and flow velocity values.

● ‌The sensor adopts CoBeam2™ technology, providing accurate and stable low‑pressure signal detection, capable of measuring flow velocities as low as 1 m/s.

● ‌Uses multi‑stage transmission temperature‑pressure compensation technology to ensure accurate and stable output over a wide range.

● ‌Separate blowback for high‑ and low‑pressure ends keeps the pipeline clean and prevents clogging.

● ‌Unidirectional corrosion‑resistant design suitable for complex operating conditions.

● ‌High stability of the pressure signal with built‑in periodic auto‑zero.

● ‌Temperature, pressure, and flow are integrated into one module; probe length is adjustable, and the independent structural design makes installation and maintenance simple.

>>Main technical parameters
