| Brand Name: | JUGE |
| Model Number: | AG-WZZ-H01-β |
| MOQ: | 1 Unit |
| Price: | USD2000-5000 |
| Payment Terms: | T/T,Online order |
| Supply Ability: | 100 Unit/Week |

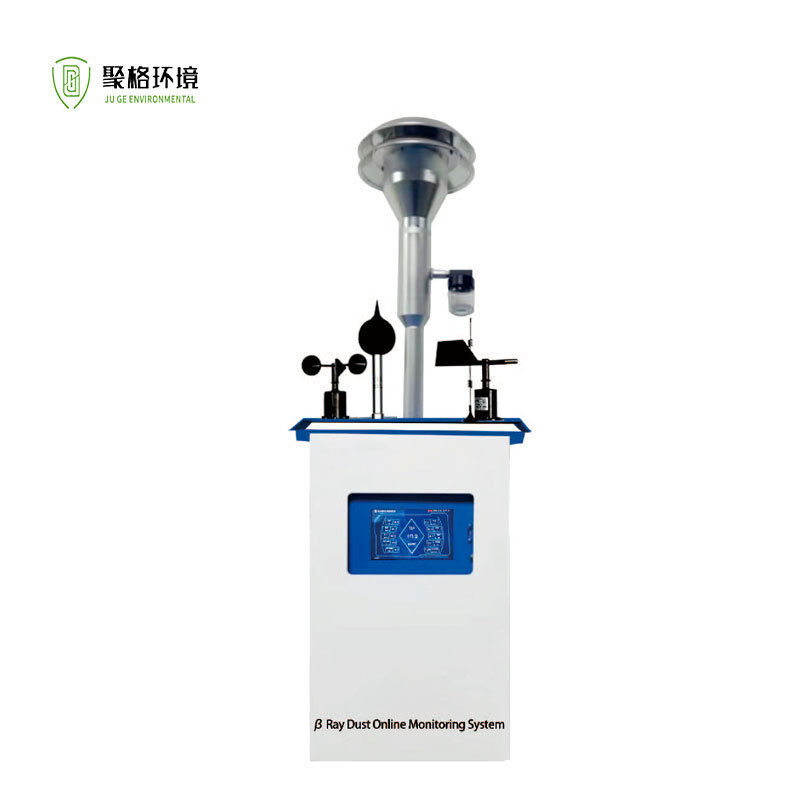

Utilizes advanced beta-ray absorption principle to directly measure the mass concentration of particulate matter, unaffected by factors such as particle composition, density, or color.
Employs a low-density, low-activity 14C source with a long half-life (5700 years), ensuring stable measurement without requiring special protection; safe, reliable, and free from radioactive contamination.
Features a user-friendly human-machine interface for convenient operation.
Large-screen LCD display showing operating concentration, standard concentration, historical data records, calibration records, alarm records, instrument status, and more.
Local data storage capability for up to 3 years or more.
Rich device interfaces: optional wireless interface, wired interface, digital I/O, 4-20mA, RS485, etc., ensuring compatibility with various application scenarios.
Adopts proprietary patented technology with a simple and stable paper transport mechanism.
Patented algorithm ensures paper-saving, no paper breakage, and no jamming.
Low instrument failure rate and minimal maintenance (maintenance interval can exceed two months, apart from normal tape replacement).
Long calibration interval, with calibration check possible once a year; features calibration record query function.
Equipped with cloud platform and mobile APP, offering rich software functionality.
>>Main technical parameters
| Name | Description |
| Detection Target | PM2.5, PM10, TSP |
| Detection Principle | Beta-ray method |
| Beta Source | 60 pCi ± 15 pCi, half-life 5730 years |
| Standard Range | 0 ~ 1000 μg/m³ |
| Operating Temperature | -40 °C ~ +60 °C |
| Operating Humidity | ≤95% |
| Compatible Data Protocols | HJ212-2005, HJ212-2017, JSON, HEX, and other mainstream protocols |
| Input Power | 100-240 VAC, 50-60 Hz |
| Optional Ranges | 0~100, 200, 250, 500, 2000, 5000, 10000 μg/m³ |
| Measurement Accuracy | 0.1 μg/m³ |
| Sampling Period | 1~3600 min (configurable), default 1 hour |
| Flow Rate | 16.7 L/min (adjustable 0~20 L/min) |
| Glass Fiber Filter Paper | Each roll lasts no less than 2 months |
| Data Storage | Can store test records for up to 3 years (with 1-hour sampling interval) |
| Data Display | 5-inch large LCD screen, smart terminal (mobile phone, PAD, etc.) |
| External Interfaces | RS-232/RS-485, RJ45 |
| Expansion Interfaces | Wireless 4G, digital I/O, 4-20 mA |
| Installation Methods | Portable, pole-mount, tripod, wall-mount, vehicle-mount, etc. |
