| Brand Name: | JUGE |
| Model Number: | AG-600-Y8 |
| MOQ: | 1 Unit |
| Price: | USD300-5000 |
| Payment Terms: | T/T,Online order |
| Supply Ability: | 100 Unit/Week |

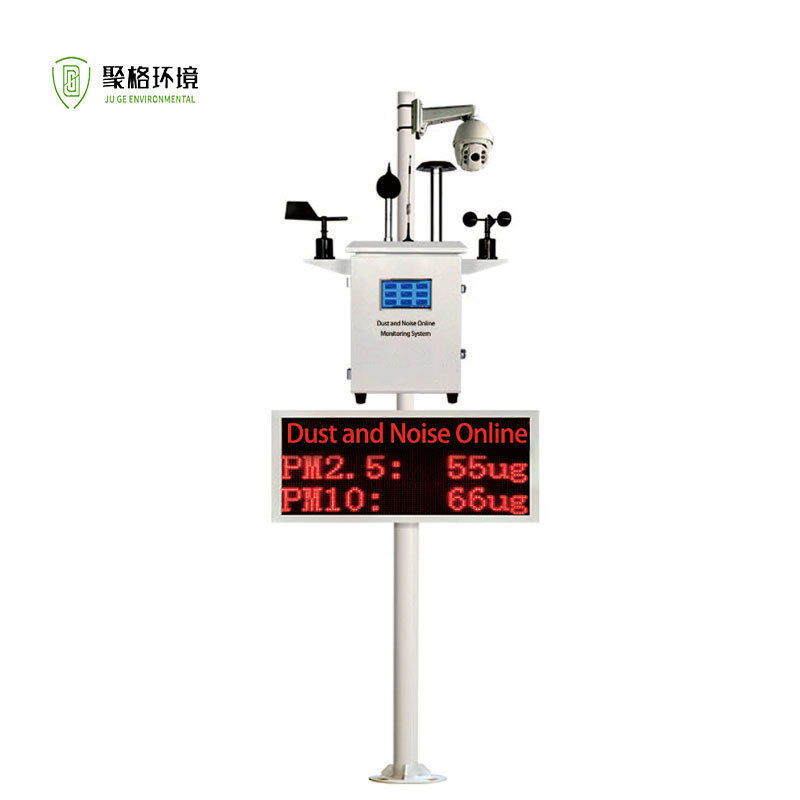

PM1.0 PM2.5 PM10 PM100 TSP Dust Noise Humidity Wind Speed Online Monitoring System
>>Overview
Modular Design: Configurable with flexible combinations to customize monitoring factors as needed, suitable for large-scale grid deployment.
Self-Calibration: Features optically stable self-calibration and online zero-correction systems to eliminate long-term operational drift. Traceable to national standard stations.
Multi-Size Particle Monitoring: Measures PM₁.₀, PM₂.₅, PM₁₀, PM₁₀₀, and TSP simultaneously via metallic cutters without replacing sampling components.
Dynamic Humidity Control: Utilizes dynamic heating dehumidification with continuous humidity compensation to minimize environmental interference.
Robust Sampling System: Long-life, low-noise, anti-interference pump with adjustable sampling cycles.
Flexible Data Transmission: Integrated 4G/5G, RS485, and wireless units support data transfer via GPRS/CDMA, 3G/4G/5G networks, or dedicated lines. Enables 24/7/365 operation, remote parameter adjustment, and fault diagnosis.
Expandable Sensors: Optional modules for meteorological parameters (negative oxygen ions, rainfall, radiation, UV, etc.).
Intelligent Imaging: Configurable cameras with night vision and long-range capture capabilities; supports auto-snapshot, video overlay, and real-time viewing.
| Particulate Matter (PM) | |
| Measurement Method | Laser Scattering |
| Measured Parameters | PM₂.₅, PM₁₀, PM₁₀₀, TSP |
| Concentration Range | PM₂.₅: 0-1000 μg/m³; PM₁₀: 0-2000 μg/m³; TSP: 0-30 mg/m³ (customizable) |
| Concentration Precision | 0.1 µg/m³ |
| Concentration Accuracy | ±2.5% or ±10 μg/m³ (whichever is greater) |
| Pump Flow Rate | 2.83 L/min; PID-controlled ±2.5%; Accuracy: ±2.5% F.S. |
| Dehumidification | DHS (Dynamic Heating System) with dynamic humidity control |
| Particle Size Range | 0.3–100 μm |
| Gas Path Protection | Standard |
| Temperature Control | Adjustable (10–60°C ±1°C) |
| Noise Monitoring | |
| Measurement Range | 30–130 dB(A) |
| Response Time | 200 ms |
| Resolution | 0.1 dB |
| Accuracy | ±0.5% F.S. |
| Environmental Parameters | |
| Temperature | Range: -40°C to +70°C; Resolution: 0.1°C; Accuracy: ±0.2°C |
| Humidity | Range: 0–100% RH; Resolution: 0.1% RH; Accuracy: ±3% RH |
| Wind Speed | Range: 0–60 m/s; Resolution: 0.1 m/s; Accuracy: ±(0.3 + 0.03V) m/s |
| Wind Direction | Range: 0–360°; Resolution: 1°; Accuracy: ±3° |
| Atmospheric Pressure | Range: 45–120 kPa; Resolution: 0.01 kPa; Accuracy: ±0.05 kPa (25°C @ 103.5 kPa) |
| Local Display | 4-line display; Switch power supply; RS485 interface; Dimensions: 1020×540×120 mm |
| Mounting Setup | 3m national-standard pole (or bracket); Lightning rod (Ø89 mm, 2 mm thickness, two 1.5m threaded rods). Wall-mount optional. |
| Data Transmission | 4G/5G/RS232/RS485; Compliant with Chinese national standard HJ 212-2017 |
| Power Supply | AC 220V 50Hz; 150W; Protections: leakage/overload/surge |
| Operating Environment | Temperature: -40°C to +70°C; Humidity: 0–95% RH (non-condensing); IP53 rating |
| Host Functions | |
| Data Capture Rate | ≥90% for particulate data |
| Local Storage | ≥24 months of historical data |
| Data Recovery | Auto-recovery and retransmission upon network restoration |
| Linkage System | Supports mist cannon and spray linkage |
| Remote Management | Remote firmware updates, parameter configuration, linkage control, and diagnostics |
