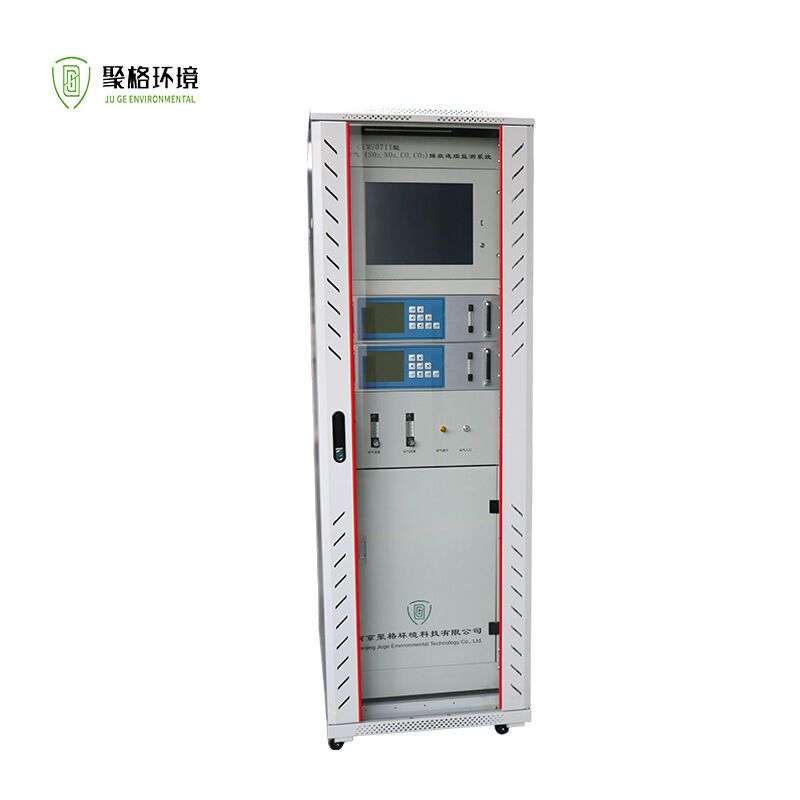

Online Continuous Emission Monitoring System with GC-FID Technology for Non-Methane Total Hydrocarbon and ≤2% Repeatability

Online Continuous Emission Monitoring System with GC-FID Technology for Non-Methane Total Hydrocarbon and ≤2% Repeatability

Brand Name:	JUGE
Model Number:	AG-VOCS-07
MOQ:	1 Unit
Price:	USD10000-20000
Payment Terms:	T/T,Online order
Supply Ability:	100 Unit/Week

Detail Information

Product Description

Detail Information

Place of Origin:

Nanjing, China

Certification:

IOS9001, CE

Product Name:

CEMS For Non-Methane Total Hydrocarbon

Nmthc Range:

0-100mgc/m3 OEM

24H Zero Drift And Range Drift:

≤±2%F.S.

1week Zero Drift And Range Drift:

≤±2%F.S.

Packaging Details:

Neutral carton

Highlight:

Chromatography cems continuous emission monitoring system

Vocs cems continuous emission monitoring system

CEMS fid hydrocarbon analyzer

Product Description

Online Continuous Emission Monitoring System For VOCs Gas Chromatography FID Non Methane Total Hydrocarbon Gas Analyzer

Online VOCs Gas Chromatography FID Non-Methane Total Hydrocarbon Continuous Emission Monitoring System Gas Analyzer

Overview

Used for real-time concentration online monitoring of volatile organic compounds (VOCs) emitted from industries such as petrochemical, spray painting, injection molding, coatings, printing and dyeing, electronics, and automotive manufacturing.

The system uses advanced GC-FID + high-temperature complete extraction technology, capable of measuring multiple parameters including methane, total hydrocarbons, non-methane total hydrocarbons, temperature, pressure, flow rate (flow), O2, humidity, and can be expanded to measure benzene series or other characteristic factors.

The sample gas passes through a dust-removal probe and is heated by a trace-heating tube before entering the high-temperature chromatograph for analysis, effectively preventing sample loss during collection and analysis. It offers excellent stability for data upload and maintenance.

Features

The core instrument uses imported multi-port valve design with no dead volume, ensuring measurement precision and accuracy
Equipped with a high-sensitivity detector and low detection limit
Automatic fault recording for easy maintenance
Automatic hydrogen gas source cutoff in case of flameout or hydrogen leak
Expandable for additional monitoring factors

Main Technical Parameters

Items	Parameter
NMTHC Monitoring Unit	NMTHC \| (0-100)Mgc/m³, OEM
O2	(0-25)%
Repeatability	≤2%
24-Hour Zero Drift And Range Drift	≤±2%F.S.
One Week Zero Drift And Range Drift	≤±3%F.S.
Linearity Error	≤±2%F.S.
Analysis Cycle	≤120s
Flue Gas Parameter - Temperature	Range \| (0-300)ºC, OEM Accuracy \| ≤±3ºC
Pressure	Range \| (-2.5-2.5)Kpa Accuracy \| ≤0.5%
Velocity Of Flow	Range \| (0-40)m/s, (0-2)Kpa, Optional Accuracy \| ≤±5%
Humidity	Range \| (0~40)Vol% Accuracy \| ±2%
Data Acquisition And Processing Unit	Data Transmission Module \| 8 Way Analog Input 1 Way Rs485
IPC	6 Way Rs232 Windows7
Software	VOCs Monitoring Software V3.0
Power Supply	AC 220V, 50Hz, ≤7Kw

System Composition
